TYPE
PRODUCT
TYPE
DESCRIPTION
MATERIALS
TEMPERATURE [°C]
min. – max.
SPEED
[m/s]
PRESSURE
[MPA]
max.
DIMENSIONS
(mm)
TECH.
INFO
Piston seal

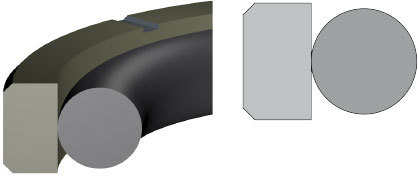

PS-10
double acting
PTFE bronze + OR NBR
-30
100
15
40
PTFE bronze + OR FKM
-15
200
15
40
TPU + OR NBR
-30
100
2
-
<= 2500
Piston seal

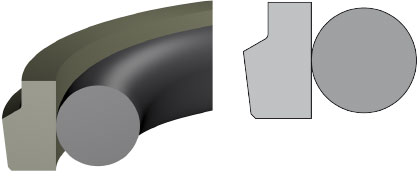

PS-11
single acting
PTFE bronze + OR NBR
-30
100
15
40
PTFE bronze + OR FKM
-15
200
15
40
TPU + OR NBR
-30
100
2
-
<= 2500
Piston seal

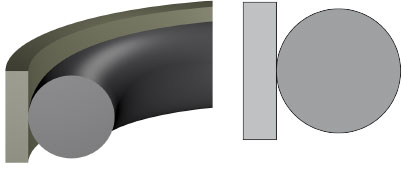

PS-12
double acting
PTFE bronze + OR NBR
-30
100
2
16
PTFE bronze + OR FKM
-15
200
2
16
<= 2500
Piston seal

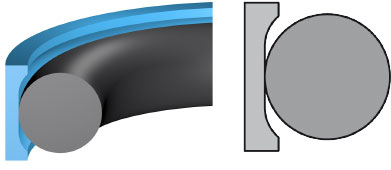

PS-13
double acting
PTFE compounds + OR NBR
-30
100
15
35
PTFE compounds + OR FKM
-15
200
15
35
<= 2500
Piston seal

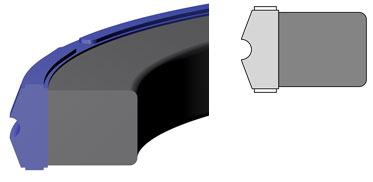

PS-14
double acting
TPU + NBR
-30
100
0.5
40
<= 200
Piston seal

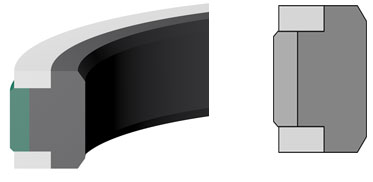

PS-17
double acting
heavy duty
PTFE bronze + NBR + POM
-30
100
1.5
40
<= 290

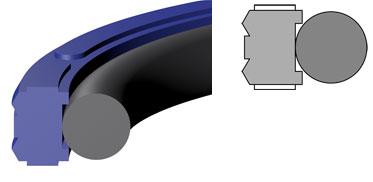

Piston seal
PS-18
double acting
TPU + NBR
-30
100
0.5
25
<= 250

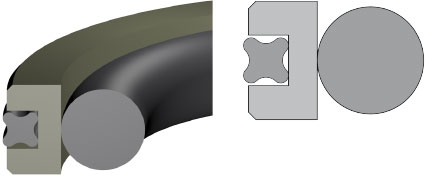

Piston seal
PS-19
double acting
PTFE bronze + OR NBR
-30
100
2
40
PTFE bronze + OR FKM
-15
200
2
40
<= 700
Piston seal

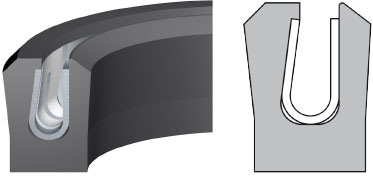

PS-87
single acting
PTFE carbon / graphite
V-spring: 1.4310
-150
250
15
35
<= 2500
Piston seal

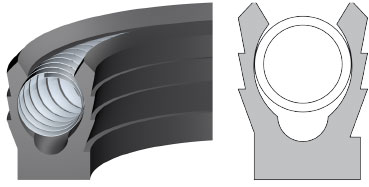

PS-88
single acting
PTFE compounds
V-spring: 1.4310
-150
250
10
25 (45)
<= 2500
Piston seal

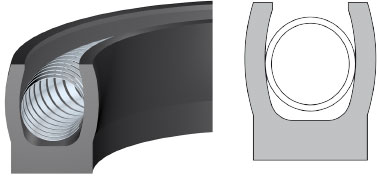

PS-89
single acting
PTFE compound
V-spring: 1.4310
-150
250
5
30
<= 2500

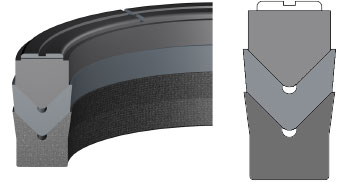

Piston seal
PS-20
single acting
NBR / Fabric + POM
-30
100
0.5
40
FKM / Fabric
-15
150
0.5
40
<= 300
Piston seal

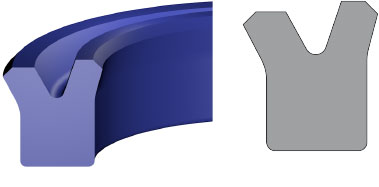

PS-72
single acting
TPU
-30/-40
100
0.5
40
NBR
-30
100
0.5
15
-
-
-
-
TPU <= 450
NBR <= 360
Piston seal

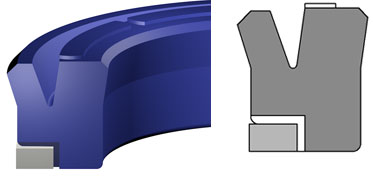

PS-65
single acting
TPU + POM
-30
100
0.5
40
<= 240
Piston seal

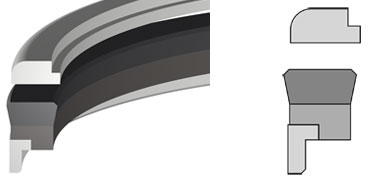

PS-33
single acting
NBR + NBR/fabric + POM
-30
100
0.5
50
<= 200
Piston seal
PS-40
double acting
NBR + TPE + POM
-30
100
0.5
40
<= 280
Piston seal

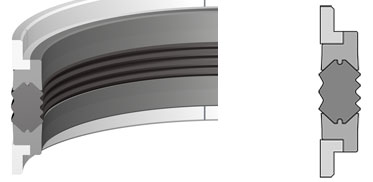

PS-42
double acting
NBR + TPE + POM
-30
100
0.5
70
<= 350
Piston seal

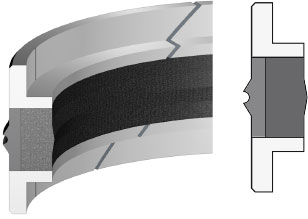

PS-44
double acting
NBR + NBR/Fabric + POM
-30
100
0.5
40
>= 250
Piston seal

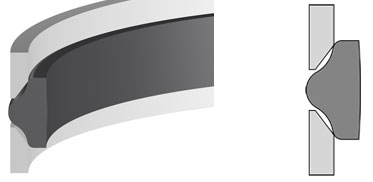

PS-45
double acting
NBR + POM
-30
100
0.5
15
<= 200
Piston seal

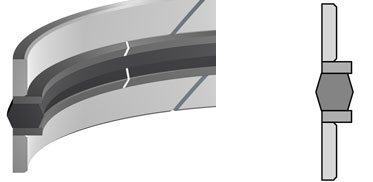

PS-53
double acting
NBR + TPE + POM
-30
100
0.5
40
<= 203.2

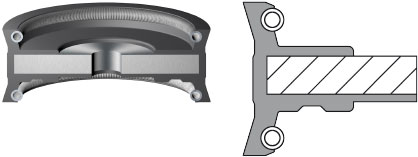

Piston seal
PS-50
double acting
NBR + carbon steel
-30
100
0.5
1-6
<= 300

On request available in other materials
